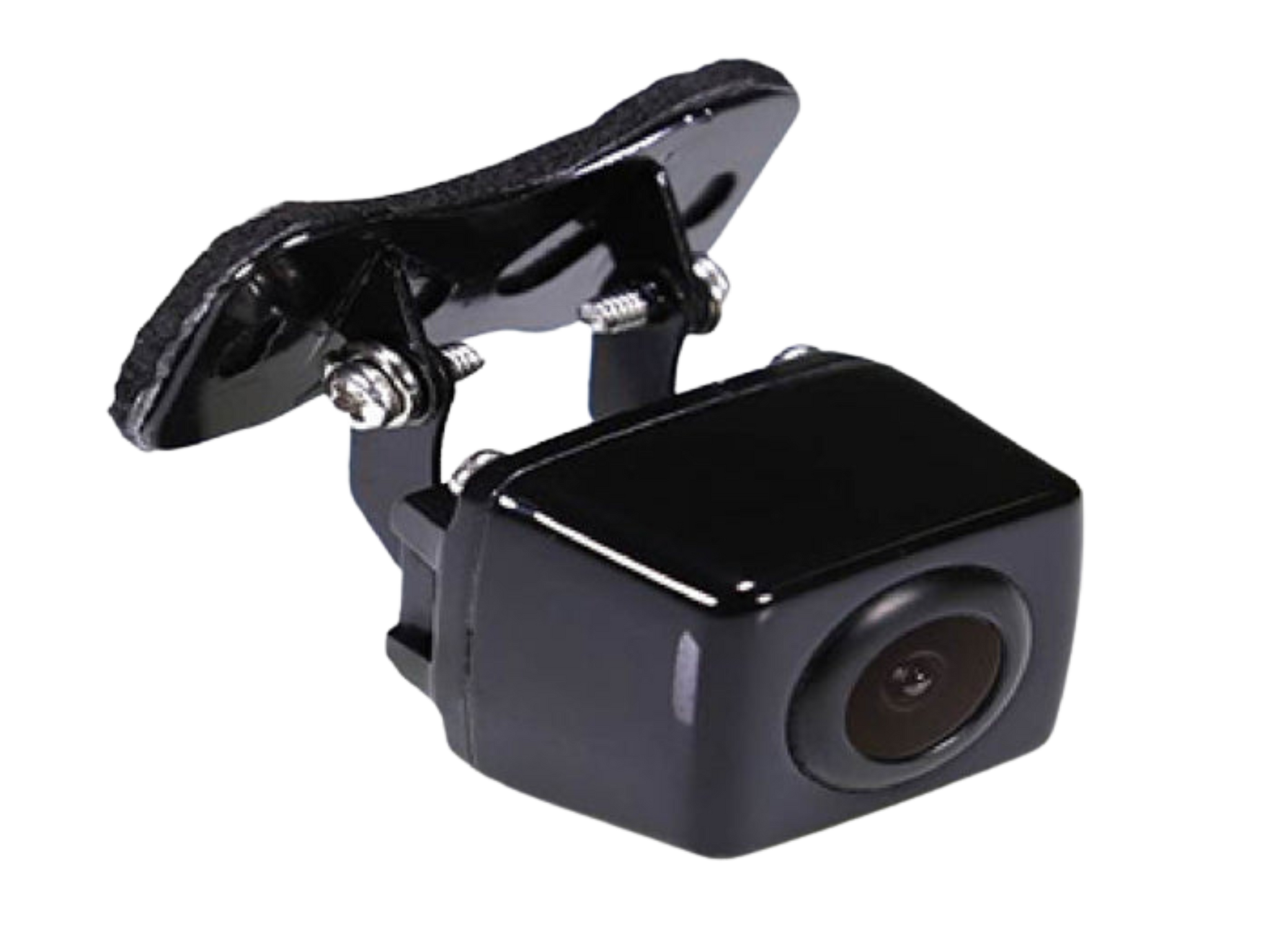

Surface mount camera for VMS system
- Surface Mount Design For Simple Installation On The Front Or Rear Of The Vehicle
- Can Be Used As A Front View, Rear View Or Reverse Camera Thanks To The Loop Feature
- Equipped With Optional Parking Gridlines That Help You Reverse The Vehicle With Ease Even In Tight Parking Spots
- 170 Degree Super Wide Angle Lens For Reduced Rear View Blindspots
- Aluminum Case And Rated Ip67 That Guarantee The Camera Will Withstand Impact Of Water And Debris Normally Hounding The Vehicle's Exterior
- Camera Is Pal/Ntsc Switchable, Making It Compatible With All Display Monitors And Aftermarket Av Headunits With Rca Input
- Low Lux Image Sensor For Use In Low Light Environments

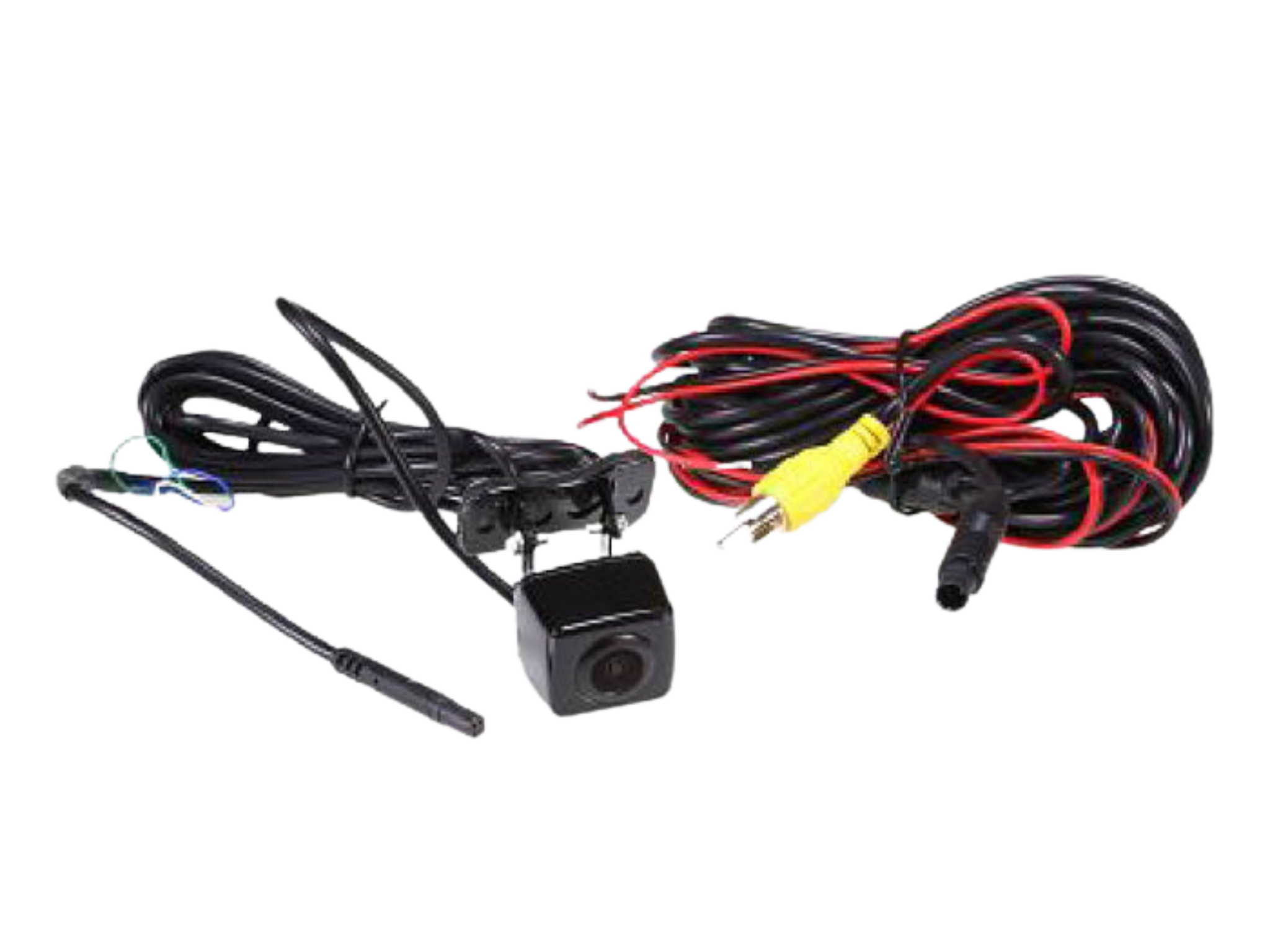

- Includes 2-metre Power Wire And 6-metre Rca Lead
- Loop System For Adjustable Settings During Installation
- Mount Type: Surface Mount
- Reverse Or Rear View: Switchable Reverse/Rear Camera
- Lens Angle: 170 Degree
- Image Sensor (Cmos Or Ccd): Cmos
- Parking Gridlines: Switchable On/Off
- Pal Or Ntsc: Switchable Ntsc/Pal
- Ip Rating: Ip67
- Voltage: 12V
- Minimum Illumination: 0.2Lux
- Number Of Leds: N/A
- Led Type: N/A
- Plug Type Camera End: 4 Pin Micro Din Plug
- Plug Type Monitor End: Rca
- Length Of Video Cable: 6M
- Reverse Trigger On Video Cable: Yes
- Dimensions (Camera Only): 19Mm(H) X 24Mm(W) X 22Mm(L)
- Dimensions (Camera & Bracket): 29Mm(H) X 34Mm(W) X 33Mm(L)
