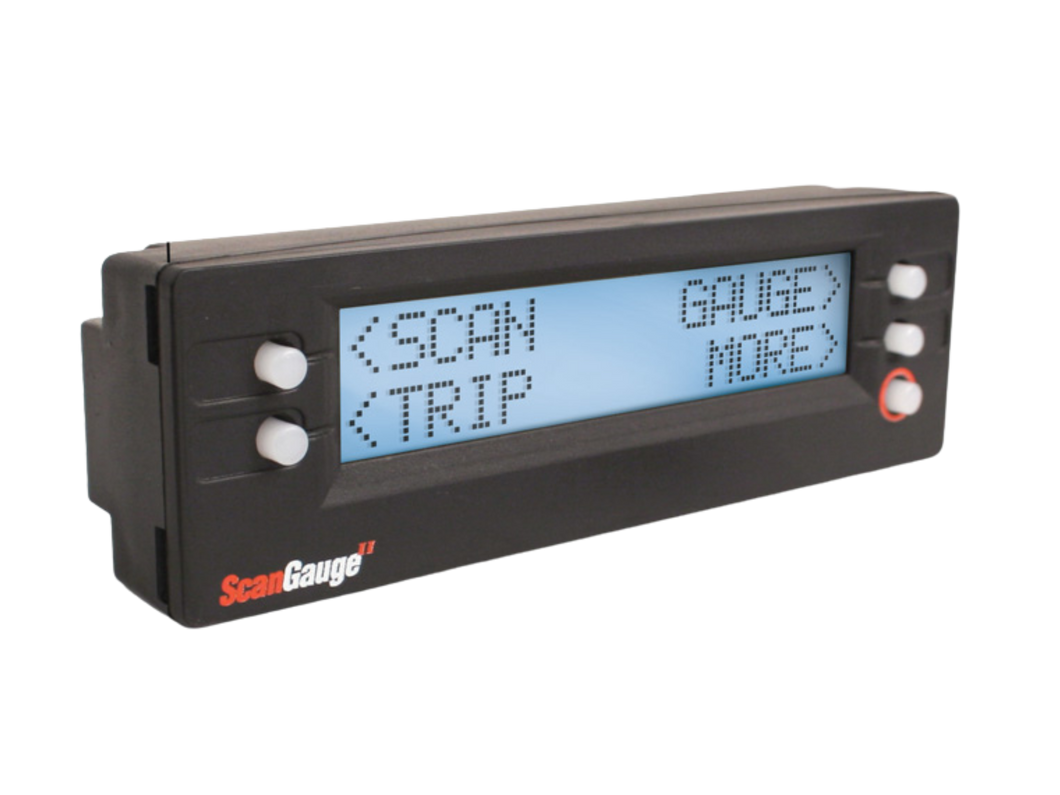

SCANGAUGE 2 - AUSTRALIAN VERSION

  • Compatible with all OBDII protocols
  • More than 15 Built-in Digital Gauges
  • Check & Clear Trouble Codes
  • Multiple Trip Computers
  • X-Gauge programmable gauge system
  • Performance Monitor

ScanGaugeII can help you monitor your vehicle’s most vital systems and provide the kind of real-time information you’ve been missing. Features include more than 15 built-in digital gauges, X-Gauge feature that allows you to add car make and model dependent gauges like transmission temperature gauge, EGT, DPF soot and many more, 5 sets of trip data and an easy-to-use Scan Tool that shows both set and pending trouble codes — all in an ultra compact design that installs in minutes.

 PLEASE NOTE: This product is subject to availability, to confirm availability please CONTACT US to confirm.

DIGITAL GAUGES

ScanGauge-II provides real-time gauges to show you what is going on “under the hood” with more than 15 built-in digital gauges. The gauge screen allows you to select and display 4 gauges at a time, so you can monitor the current operating conditions of your vehicle in real-time.

Learn To Improve Your Fuel Economy With Scangauge-II

ScanGauge-II provides real-time data about your vehicle’s instant and average fuel economy, fuel used, cost of fuel used for each trip, cost per KM, Litres per hour and more!

There are many ways to reduce your fuel usage and increase fuel economy. Real time feedback like what the ScanGauge provides is one of the most effective.

  • Driving More Efficiently With ScanGauge Can Save Up to 33%
  • Removing Excess Weight and Drag can save up to 17%
  • Simply Observing the Speed Limit can save up to 14%
  • Avoiding Excessive Idling can save up to 2%

*The information available may vary depending on vehicle's make and model. If the information is not available no data will be shown for it. If the same gauge is selected for more than one position, only one of them will show data.

Gauge Name
AVG Average Fuel Economy

CLSD LP / OPEN LP

Fuel System Loop Status
CPM Cost Per Mile/KM

FIA / CIA

Intake Air Temperature
FPR Fuel Pressure

FWT / CWT

Water Temperature

GPH

LPH

Gallons Per Hour

Litres Per Hour

MAP

BST

Manifold Absolute Pressure

Boost

MPG

KPG

MPL

LHK

KPL

Miles Per Gallon

Kilometers Per Gallon

Miles Per Litres

Liters Per 100Km

Kilometeres Per Liter

MPH

KPH

Miles Per Hour

Kilometers Per Hour

RPM Revolutions Per Minute
TFC Trip Fuel Cost
TPS Throttle Position Sensor
VLT Battery Voltage
IGN Ignition Timing
LOD Engine Loading
HPR Horsepower





Exclusive Programmable Gauge System

In addition to the standard set of gauges, the ScanGaugeII features the exclusive X-GAUGE™ programmable gauge system; you can monitor parameters such as transmission temperature, trip data and fuel economy information. X-Gauge™ gives you the ability to customise your ScanGaugeII by adding additional vehicle specific digital gauges.

LEARN MORE






PERFORMANCE MONITOR

The ScanGaugeII features the all-new Performance Monitor™ for real-time performance measurements. The Performance Monitor gives you the ability to track your vehicle’s performance over short periods of time, distance and acceleration.

Monitor various aspects of your vehicle’s performance such as:

  • Track your quarter-mile times and speeds at the track.
  • Determine your vehicle’s 0-60 time.
  • Measure your vehicle’s braking performance.
  • Save and Recall performance runs.
  • Monitor specific Digital Gauges.
  • and much more…





TRIP COMPUTERS

With five built-in trip computers, the ScanGauge can keep track of everything from fuel cost to distance traveled and everything in between. Data is stored on the ScanGauge and is retained even when the power is disconnected. Each trip computer starts automatically and information is available anytime during the trip.

Time & Distance Trip Computer Fuel & Tank Trip Computer
ScanGauge includes three trip computers based on time and distance. They include the Current Trip, Today Trip and Previous Day Trip. Each trip computer starts automatically and tracks the following parameters: The ScanGauge includes two trip computers based on the current tank of fuel. They include the Current Tank and Tank to Empty. Each trip computer starts automatically when you tell ScanGauge you have filled your tank.
KM/L / MPG KML / MPG for Current Tank
Fuel Used Fuel Used on Current Tank
Max Coolant Temperature Tank to Empty
KMs Driven Distance to Empty
Max RPM Distance Until Empty
Hours Driven Hours Driven on Current Tank
Max KPH Hours to Empty
Average KPH Average Speed
Fuel Cost Fuel Used Cost



ENGINE SCAN TOOL

The ScanGauge can check for Engine Diagnostic Trouble Codes (DTCs) and if found, can display how many there are and the Trouble Codes themselves. Using the internet or repair manuals, these can be translated to the failed component and repairs can be made.

  • Reads Trouble Codes
  • Clears Trouble Codes
  • Shows Conditions When Trouble Was Detected (RPM, COOLANT, TEMP etc)
  • Turns Off “CHECK ENGINE” Light
  • Shows When Onboard Tests Have Been Completed And Vehicle Is Ready To Pass OBDII emissions Testing



GREAT FEATURES

Easy to Install No Tools Required

Installs in just minutes without tools. Simply plug the ScanGauge into the diagnostic connection under the dash.

No Batteries Required

The single connection to the diagnostic connector under the dashboard is all that is needed.

Automatic Protocol Determination

ScanGauge automatically determines the protocol your vehicle uses and connects.

6-Foot Cord and Velcro® Attachment

The ScanGauge can be mounted up to 6 feet from the under-dash diagnostic connector. The included Velcro® attachment system allows the ScanGauge to be quickly detached and then used to troubleshoot other vehicles.

User-Friendly Menu-Driven Operation

Simple 5-button operation allows you to quickly and easily access the powerful features of the ScanGauge.

Colour Backlight Display

Match your instrument panel for an integrated look.

English & Metric Units

The Digital Gauges and Trip Computer information can be shown in either English or Metric units of measure, including KM’s, Litres, Celsius, and kPA.

Compact Design

Unit Dimensions 12.2 x 3.8 x 2.55 cm



PACKAGE INCLUDES

ScanGauge2 unit (latest Australian firmware version 4.52AU)

ScanGauge cable (1.8m)

Velcro tape

User manual

Quick start guide



VW Australian XGAUGE Settings (From Scangauge Website)

**For Any more info or other updates please contact Scangauge**

VW X-GAUGES

Each X-GAUGE consists of 4 program parameter screens — TXD, RXF, RXD and MTH — as well as one gauge name screen. See user manual page 39 to learn how to add X-Gauge.



Amarok/ Tiguan

Gauge Auto Transmission Temperature ATF(1)
TXD 07E122A008
RXF C46205A03608
RXD 3008
MTH 00010001FFD8
Notes

 *confirmed working on 2018 Amarok

 *4.22+ Required

 *should work any other VW with 8 speed transmission (2015+)



Amarok 2017-2018

Gauge Exhaust Gas Temperature EGT(4)
TXD 07E0229DD4
RXF C32100000000
RXD 3810
MTH 00010001FFD8
Notes

 *confirmed working on 2017 Amarok V6

 *4.22+ Required

 *further testing/ feed-back required

Gauge DPF Regen Status (On/ Off) RGN
TXD 07E0229D63
RXF C562269D3763
RXD 4701
MTH 10010000
Notes

 *confirmed working on 2017 Amarok V6

 *4.22+ Required

 *further testing/ feed-back required

Gauge Regen Type (Active 1/ Pasive 0) RGT
TXD 07E0229D63
RXF C562069D3763
RXD 4601
MTH 10010000
Notes

 *confirmed working on 2017 Amarok V6

 *4.22+ Required

 *further testing/ feed-back required

Gauge DPF Soot Load (%)
TXD 07E0229D63
RXF C562069D3763
RXD 4808
MTH 006400FF0000
Notes

 *4.22+ Required

 *further testing/ feed-back required



Amarok 2013-2016

Gauge Exhaust Gas Temperature Sesor 1 EG1
TXD 07E02210F7
RXF C462051036F7
RXD 3010
MTH 0001000AFEEF
Notes

 *confirmed working on 2013 Amarok 2.0L Diesel

 *4.22+ Required

 *further testing/ feed-back required (might work on 2010-2012 models as well)

Gauge DPF Soot Mass (grams) GRM
TXD 07E022304E
RXF C4628530364E
RXD 3010
MTH 00010010022
Notes

*confirmed working on 2013 Amarok 2.0L Diesel

 *4.22+ Required

 *further testing/ feed-back required (might work on 2010-2012 models as well)



Gauge Temperature at Turbo Outlet (°C) TRB
TXD 07E0223A51
RXF C462053A3651
RXD 3010
MTH 0001000AFEEF
Notes

*confirmed working on 2013 Amarok 2.0L Diesel

 *4.22+ Required

 *further testing/ feed-back required (might work on 2010-2012 models as well)

Gauge Engine Oil Temperature 1 (°C) EO1
TXD 07E02230DB
RXF C462053036DB
RXD 3010
MTH 0001000AFEEF
Notes

*confirmed working on 2013 Amarok 2.0L Diesel

 *4.22+ Required

 *further testing/ feed-back required (might work on 2010-2012 models as well)

Gauge Transmission Fluid Temperature (°C) TFT
TXD 07E122A008
RXF C46205A03608
RXD 3008
MTH 00010001FFD8
Notes

*confirmed working on 2013 Amarok 2.0L Diesel

 *4.22+ Required

 *further testing/ feed-back required (might work on 2010-2012 models as well)

Gauge Current Gear  (#) GER
TXD 07E022A06A
RXF C46205A0366A
RXD 3008
MTH 00010001FFFE
Notes

*confirmed working on 2013 Amarok 2.0L Diesel

 *4.22+ Required

 *further testing/ feed-back required (might work on 2010-2012 models as well)
