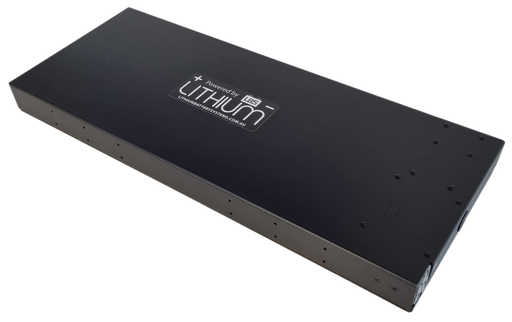

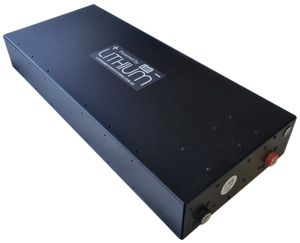

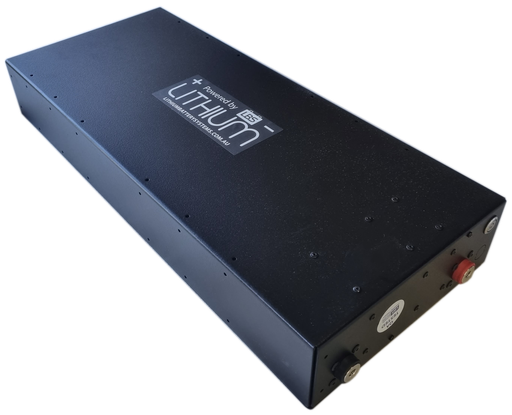

LBS Lithium Slimline Battery - LiFePO4

LBS Lithium Slimline Battery - LiFePO4 75ah -150ah

12V 75Ah SlimLine Battery

Chemistry ​ ​ ​ ​LiFePO4

Nominal Voltage ​ ​​12 V

Nominal Capacity ​ ​ ​75 Ah

Nominal Energy ​ ​ ​1.3 kWh

Input Charge Voltage ​ ​13.8 V - 14.6 V
​ ​ ​ ​ ​14.0 V recommended

100% SoC Voltage ​ ​​13.8 V

Low Voltage cut-off ​​10.5 V approx

Charge Current ​ ​​70 A max

Discharge Current ​ ​​120 A max cont.
​ ​ ​ ​ ​240 A surge

Weight ​ ​ ​​9.8 kg

Packaged Weigh ​ ​​10.4 kg

Life at 80% DoD ​ ​​2000 cycles

Life at 50% DoD ​ ​ ​5000 cycles

Parallel Capable ​ ​​​Yes

Series Capable ​ ​​Yes (Max. 2 in series)

Size ​ ​ ​ ​​L 636 mm
​ ​ ​ ​ ​​​​D 256 mm
​ ​ ​ ​ ​H 50 mm

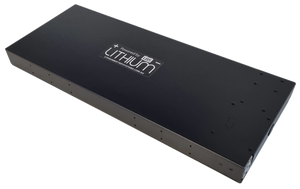

12V 110Ah SlimLine Battery

Chemistry  ​ ​LiFePO4

Nominal Voltage ​ ​12 V

Nominal Capacity  ​​110 Ah

Nominal Energy  ​ ​1.3 kWh

Input Charge Voltage  ​​​​ ​13.8 V - 14.6 V
​ ​ ​ ​​​ ​14.0 V recommended

100% SoC Voltage  ​ ​13.8 V

Low Voltage cut-off  ​​ ​​10.5 V approx

Charge Current  ​ ​​​120 A max

Discharge Current  ​ ​120 A max cont.
​ ​ ​ ​​​ ​240 A surge

Weight  ​ ​ ​​​12.9 kg

Packaged Weight  ​ ​13.3 kg

Life at 80% DoD  ​ ​2000 cycles

Life at 50% DoD  ​ ​5000 cycles

Parallel Capable  ​ ​Yes

Series Capable  ​ ​​​Yes (Max. 2 in series)

Size  ​ ​ ​ ​L 636 mm
​ ​ ​ ​​​D 256 mm
​ ​ ​ ​​​H 50 mm

12V 220Ah SlimLine Battery + Built in 40a DCDC Charger

Chemistry  ​ ​LiFePO4

Nominal Voltage ​ ​12 V

Nominal Capacity  ​​220 Ah

Nominal Energy  ​ ​2.7 kWh

Charge Voltage  ​13.8 V - 14.6 V
​ ​ ​ ​​​ ​14.0 V recommended

DC-DC Input ​ ​ ​10-16 V, 40 A

100% SoC Voltage  ​ ​13.8 V

Low Voltage cut-off  ​​ ​ ​10.5 V approx

Charge Current  ​ 140 A max

Discharge Current  ​ ​240 A max cont.
​ ​ ​ ​​​ ​480 A surge

Weight  ​ ​​​​​24.0 kg

Packaged Weight  ​ ​24.8 kg

Life at 80% DoD  ​ ​2000 cycles

Life at 50% DoD  ​ ​5000 cycles

Parallel Capable  ​ Yes

Series Capable  ​ Yes (Max. 2 in series)

Size  ​ ​ ​ ​L ​​672 mm
​ ​ ​ ​ ​   ​ ​682 mm (inc. terminals/handles)
​ ​ ​ ​ ​ ​ ​ D  ​257 mm
​ ​ ​  ​ ​ ​ H ​​90 mm

12V 220Ah SlimLine Battery 240A

Chemistry  ​ ​LiFePO4

Nominal Voltage ​ ​12 V

Nominal Capacity  ​​220 Ah

Nominal Energy  ​ ​2.7 kWh

Input Charge Voltage  ​​13.8 V - 14.6 V
​ ​ ​ ​​​ ​14.0 V recommended

100% SoC Voltage  ​ ​13.8 V

Low Voltage cut-off  ​​ ​ ​10.5 V approx

Charge Current  ​ ​​​140 A max

Discharge Current  ​ ​240 A max cont.
​ ​ ​ ​​​ ​480 A surge

Weight  ​ ​ ​​​22.6 kg

Packaged Weight  ​ ​23.2 kg

Life at 80% DoD  ​ ​2000 cycles

Life at 50% DoD  ​ ​5000 cycles

Parallel Capable  ​ Yes

Series Capable  ​ ​​​Yes (Max. 2 in series)

Size  ​ ​ ​ ​L 609 mm
​ ​ ​ ​ ​   ​ ​619 mm (inc. terminals/handles)
​ ​ ​ ​ ​ ​ ​ ​D  ​257 mm
​ ​ ​  ​ ​ ​ ​​H ​​90 mm
