DSP PLUG AND PLAY DSP AMPLIFIER- VW Amarok NF Next Gen 2023+ - Next Gen Ford ranger

DSP PLUG AND PLAY DSP AMPLIFIER- VW Amarok NF Next Gen 2023+ - Next Gen Ford ranger

Regular price
Sale price
Tax included. Shipping calculated at checkout.



It is quite often beleived that in a modern vehicle that the speakers installed from the factory are sub standard. Whilst its true that they are not the best quality, they can actually sound really good by improving the audio source and giving them more power.

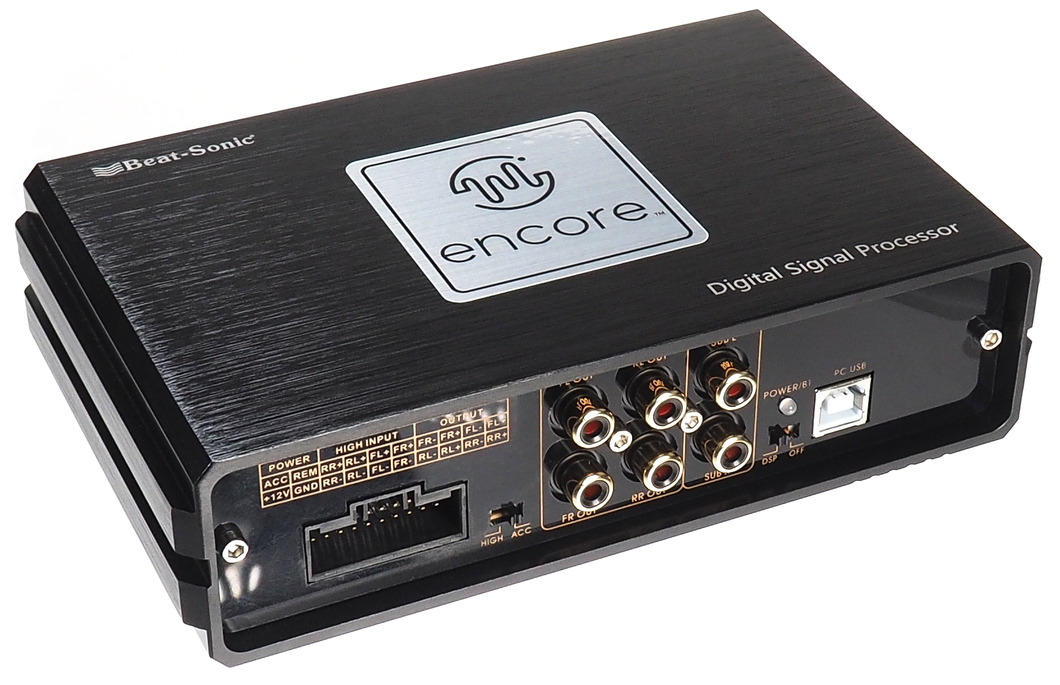

Enter the Encore X. This new small form factory DSP amplifier is made in Japan by Beat-Sonic and will transform the sound of your factory audio system in your Ford Ranger or VW Amarok.

This product comes with a custom DSP tune to bring your factory audio system to life, and its completely plug and play installation.

  • Class AB Amplifier - 4 Channels
  • Power Output - 45W x 4CH (4Ohm)
  • Speaker Impedence - 4 Ohm
  • Audio Inputs - 4 x Speaker High Level
  • Audio Outputs - 4 x Speaker Output & 6 x RCA (2.2V P-P)
  • DSP Resolution - 24bit
  • Sampling Rate - 48kHz
  • Crossover - Bypass, Bandpass, Lowpass, Highpass
  • Frequency Range - 20 - 22kHz (31 bands)
  • THD - 0.01%
  • Operating Voltage - DC 10V - 15V
  • Quiescent Current - 350mA
  • Fuse - 15A
  • Dimensions - 170mm (W) x 103mm (D) x 45mm (H)
  • Weight - 625gm Excluding the T Harness

Compatible with the following Ford Vehicles without Factory Amplifier:-

  • Ranger Nextgen from 2022 with the 12 Inch or 10 inch Sync 4 System with 6 Speaker Audio System

Note - Not Compatible with vehicles that have Factory B&O Audio System installed

Compatible with the following Volkswagen Vehicles:-

  • Amarok from 2023 with 12 Inch and 10 Inch systems with 6 Speaker Audio System

NOTE - Not compatible with vehicles that have the Factory Harmon Kardon Audio System Installed


  • The system comes with a DSP Tune that is designed to be suitable for the majority of listeners. If custom tuning is required this can be done by your dealer at an additional cost.
