Victron ORION XS DC-DC BATTERY CHARGER

ORION XS 12/12-50A DC-DC BATTERY CHARGER

Engineered from the ground up, the Orion XS redefines adaptive DC-DC battery charging. For use in dual battery systems charged with an (intelligent) alternator. This device not only ensures top-tier performance but also guarantees the safety of your system.

The Orion XS serves as a DC-DC battery charger or as a power supply, offering a wide input and output voltage range. This is especially significant in the case of vehicles with a Euro 5 or Euro 6 smart alternator, which often supplies too low charging voltage even when the engine is running or when extended cable lengths, as is often the case in boats and RVs, lead to voltage drops. In such scenarios, precise and controlled charging is imperative to fully charge the service battery while protecting the starter/input battery from discharge.

Adjustable charging current

The charge current is adjustable with a minimum stepsize of 0.1 A. via VictronConnect.
Smart alternator compatibility An integrated mechanism detects whether the engine is running (engine shutdown detection), which only activates the charger when the alternator supplies power. This ensures that the charger only draws power when the alternator is supplying power, i.e. when the engine is running.

Adaptive 4-stage charge algorithm

For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.
The Orion XS includes fully programmable charging algorithms and eight pre-programmed battery settings.

Low temperature shutdown and input under voltage protection

To prevent damage of lithium batteries the charger will turn off automatically at low temperatures. It will also shut down when the input voltage drops below a configurable lockout value and restart when the input voltage rises above the restart value, this to protect the input source ie. starter battery from deep discharge.

Remote on/off

The Orion XS can be switched on and off remotely via the remote on/off connector or the VictronConnect App. Typical applications include wiring a switch or Battery Management System (BMS).

Comprehensive electronic protection

The protections includes overload, short circuit and excessive temperatures. The charger is protected against over-temperature by reducing the output power when the maximum product temperature is reached.

Can be paralleled to increase output current
An unlimited number of units can be connected in parallel.

Bluetooth Smart enabled

Built-in Bluetooth Smart: The wireless solution to change settings, monitor activities and update the Orion XS software using Apple and Android smartphones, tablets or other devices. Various parameters can be adjusted with the VictronConnect App.

Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product.

VE.Smart Networking: Use VE.Smart Networking to receive Vsense, Tsense and Isense data over the wireless network for your Orion XS DC-DC battery charger, for example, from a BMV, a SmartShunt, or a Smart Battery Sense. The charger uses the available information from the battery to optimise the charging parameters. This improves charging efficiency and extends battery life.

VE.Direct port and DVCC

For a wired connection to a GX device such as the Cerbo GX or Ekrano GX, PC or other devices. Enables advanced monitoring, control and diagnostics from anywhere (requires a GX device connected to the internet and VRM Portal) or locally via the Remote Console, as well as DVCC (Vsense, Tsense, Isense), System wide charge current limit and BMS control.

IP65 protection
The Orion XS complies with ingress protection rating IP65. This means the product is dust-tight and protected against heavy rain.

Orion -Tr Smart Non-isolated DC-DC Charger

Setup, configure and readout by bluetooth smart

IP43 protection

5 year warranty

12v/12v 30amp

https://www.victronenergy.com.au/dc-dc-converters/orion-tr-smart-non-isolated#pd-nav-video

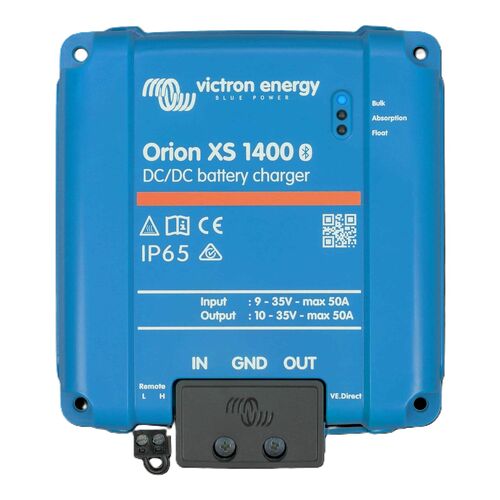

Orion XS 1400 High-efficiency DC-DC Charging with Intelligent Power Management

The Orion XS 1400 DC-DC battery charger delivers reliable and efficient power conversion for vehicle and off-grid battery systems. Designed for high performance, it supports adaptive charging, ensuring optimal power delivery while protecting batteries from overcharging and deep discharge. Its compact design, remote monitoring capability, and advanced safety features make it an ideal solution for professional and recreational applications.

Key Features

• High Power Output with Adaptive Charging: Provides up to 1400W of power with intelligent charge regulation, ensuring efficient and safe battery charging.
• Wide Input Voltage Range: Supports a broad range of input voltages, making it compatible with various battery setups in automotive, marine, and off-grid applications.
• Advanced Battery Protection: Features built-in safeguards against overvoltage, undervoltage, overheating, and short circuits to prolong battery life.
• Fully Programmable Charge Settings: Allows customisation of voltage and current settings for different battery chemistries, including lithium and lead-acid.
• Remote Monitoring and Control: Compatible with VictronConnect and GX devices for real-time data monitoring and system management.
• High Efficiency and Low Heat Dissipation: Operates with minimal energy loss, reducing heat generation for stable and efficient performance.
• Compact and Lightweight Design: Space-saving form factor ensures easy installation in tight spaces, making it ideal for mobile and stationary applications.
• Parallel Operation for Increased Power: Multiple units can be connected in parallel to boost power output for larger energy demands.
• Rugged and Durable Construction: Designed for reliability in harsh environments, with robust materials that withstand vibrations and temperature fluctuations.
• Fanless Cooling for Silent Operation: Uses passive cooling technology, eliminating noise and reducing maintenance requirements.

Enhance your battery system with intelligent, high-efficiency DC-DC charging for optimal power management.

SPECIFICATIONS:
